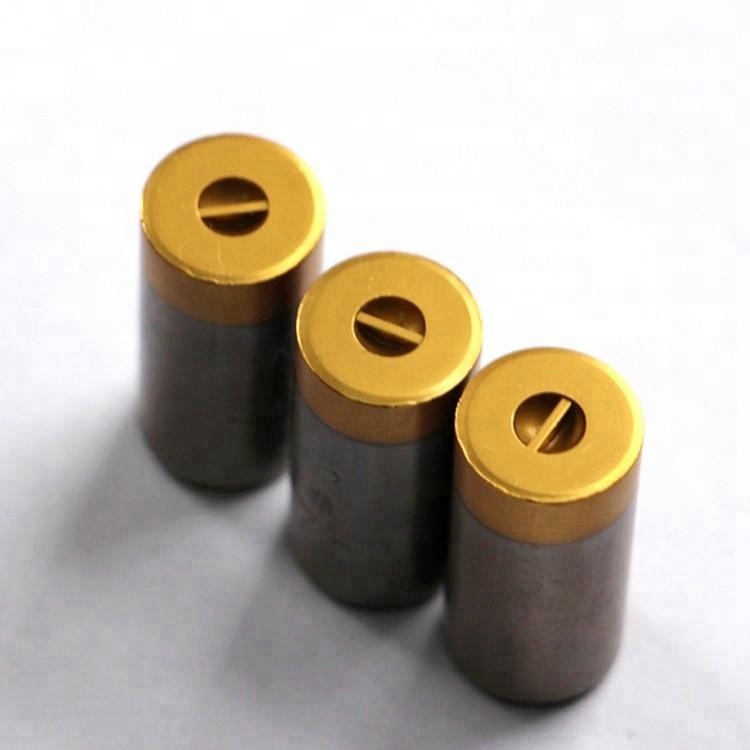

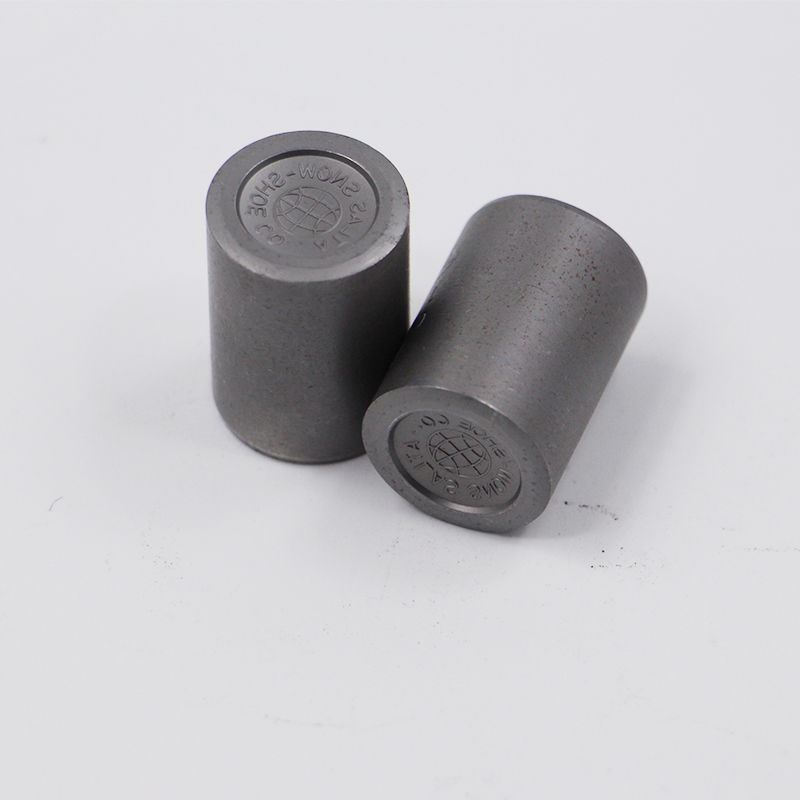

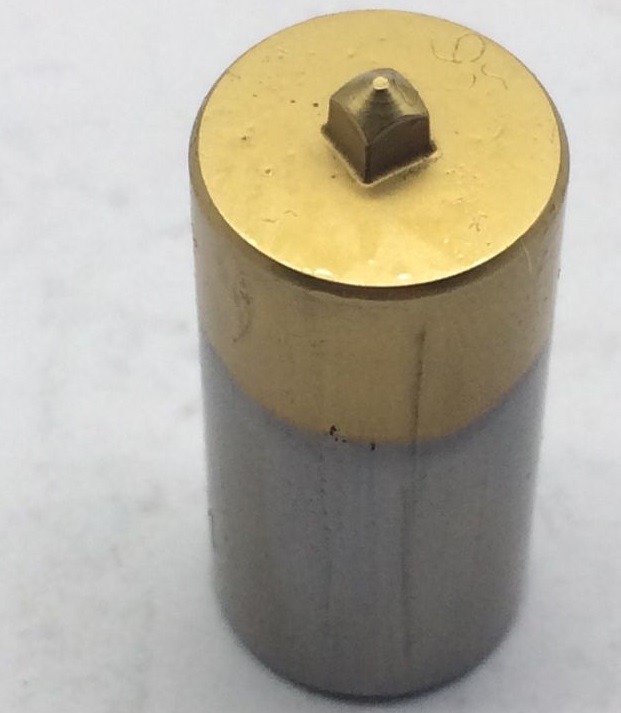

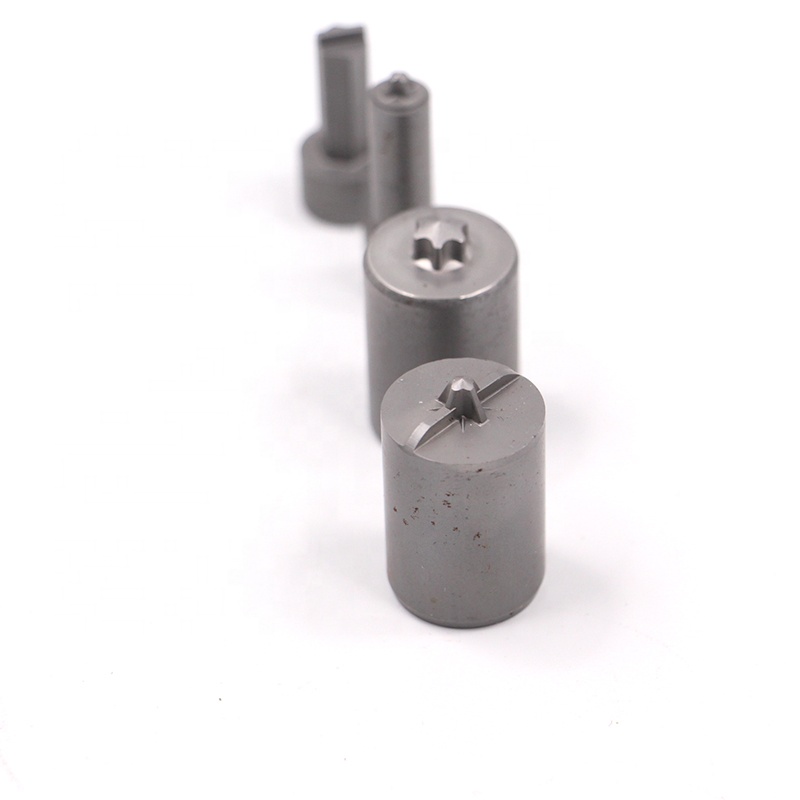

Steel Cold Heading Die Shape Customized Second Punch Die CAD Design

Name: Steel Cold Heading Die Shape Customized Second Punch Die CAD Design
Brand: henghui
Price: 2.00 USD

Steel Cold Heading Die Shape Customized Second Punch Die CAD Design Manufactures

Place of Origin : Chongqing, China

Brand Name : henghui

Model Number : customized

Packaging Details : wooden box,carton box or as require

Supply Ability : 100000 Piece/Pieces per Month Second Punch die

Price : $2.00 - $5.00/pieces

Name : Cold Heading Die

Shaping Mode : Punching Mold

Product Material : Steel

Product : Fastening mould

Product Name : in China sell well Second Punch die

Material : VA80,KG5,KG6,ST6,ST7

Size : Customer Size Accepted

Mould material : carbide

Surface treatment : Polishing

Design software : CAD

Service : ODM OEM

Shape : Customized Shapes

Keyword : SECOND PUNCH

Drawing Format : 2D(PDF/CAD)

Port : chongqing,shanghai, or according to customer requirements

Contact Now

Hot Sales Cold Heading Die Second Punch Die

Products Description

Steel Cold Heading Die Shape Customized Second Punch Die CAD Design

Material:

M42(H59)＞M35(H55)＞M2(H9)

H9(M2)		H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	0.85	0.33	0.34	0.027	0.005	4.12	4.73	1.78	5.74
	Cu	Ni
	0.12	0.24

M42(SKH59)		H9(M2)
Chemical Composition	C	Si	Mn	P	S	Cr	Mo	V	W
Content (%)	1.06	0.3	0.31	0.018	0.002	3.74	9.29	1.1	1.34
	Cu	Ni	Co
	0.07	0.29	7.97

Header punch standard:

JIS, ANSI, DIN, ISO, BS, GB, and NON-STANDARD .
The common head style:
Flat head, pan head , oval head , binding head , round head, truss head, button head, pf head, cheese head, fillister head and so on .
The common driver:
Phillips , Phillips and slot combination, slotted, hexagon, six-lobe (torx), six-lobe tamper , six-lobe/slot , pozidriv , square,
square/slot , Phillips/square, triangle and so on .

Surface Treatment:

Without coating,
With TIN coating-yellow coated,
With TILAN coating-black coated

Standard size	Weight
12x25mm	25g/pc
14x25mm	30g/pc
18x25mm	50g/pc
23x25mm	80g/pc

Process

Factory

About Us

Chongqing Henghui Precision Mold Co., Ltd. has CNC lathes, CNC machining centers, CNC Cylindrical Grinding Machine, CNC EDM machine, CNC Cutting Machine, Milling Andam Drilling Machine ,etc.We also have various types testing equipment,such as Rockwell Hardness Tester, Projector ,3D Image Measuring Instrument, etc. Henghui using high-quality tungsten carbide material and professional vacuum heat treatment.We design,manufacturing and supply high-quality precision molds for customers who engaged in cold heading and hot upsetting industries.About our molds , the relative standard deviation can be controlled within 0.005mm, concentricity can be controlled within 0.01mm. Strict accordance with ISO9001:2015 quality management system requirements of the operation,can ensure provide timely and high-quality service for our customers.Our products has exported to Southeast Asia,Europe and the United States ."Customer first, quality first, technology first, dedicated service" is our consistent operating principles.Warmly welcome to negotiate business with us.

Exhibition

Exhibition, German Fastener Exhibition, Indian Fastener exhibition and so on. We are committed to participating in various fastener screw exhibitions, and we have gained many new friends in the exhibitions. At the same time, we will visit our new and old customers offline. In each exhibition, we prepared various samples carefully and waited for the exhibition customers, who were satisfied with our products no matter in terms of design, price or quality.

Packing and Delivering

Packaging Details:Carton Box; Export Standard Package, Or As Client's Requirement.

Delivery Detail:According To The Quantity Of The Order, About 12-45 Days.

Inspection equipment

FAQ

Q1: How can I get a quotation from your company?

A1: Contact us.In order to quote you as soon as possible, we need the following information: drawings, Material , Quantity ,Surface treatment.

Q2: What is our lead time?

A2: This will be based on the number of products you customize and the country you are in.
